Description
Tableau technique
| Informations générales | |

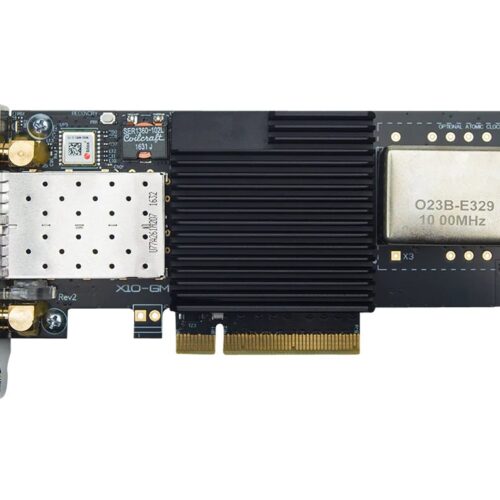

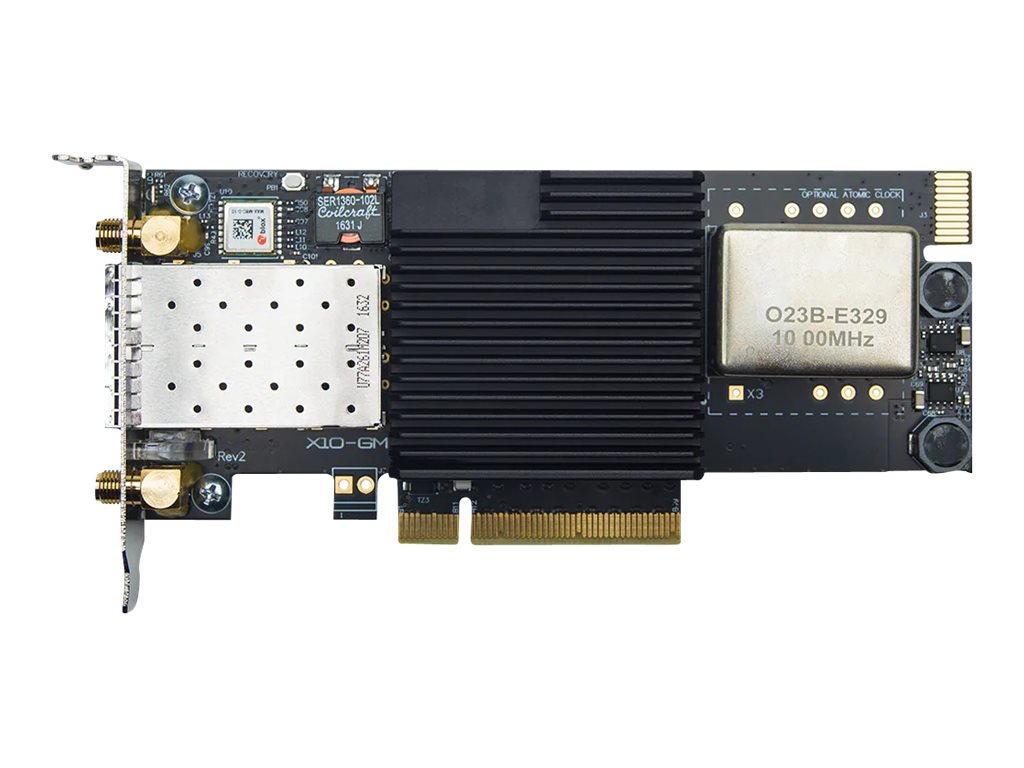

| Désignation: | CISCO Nexus PTP Grand Master NIC |
| Description: | Cisco Nexus NIC GM – Module d’extension – PCIe 3.0 x8 profil bas – Gigabit SFP+ x 2 – pour UCS C220 M5L, C240 M5, C240 M5L, SmartPlay Select C220 M5, SmartPlay Select C240 M5L |
| Code EAN: | |
| Garantie Fabricant : |
24 mois de garantie retour atelier |
| Général | |
| Type de périphérique: |
Module d’extension |
| Format: |
Carte enfichable – profil bas |
| Type d’interface (bus): |
PCI Express 3.0 x8 |
| Révision des spécifications PCI: |
PCIe 3.0 |
| Réseaux | |
| Ports: |
Gigabit SFP+ x 2 |
| Technologie de connectivité: |
Filaire |
| Type de câblage: |
Ethernet 1000Base-SX, Ethernet 10GBase-LR, Ethernet 10GBase-SR |
| Protocole de liaison de données: |
Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Performances: |
Résolution sur l’horodatage: 4 ns |
| Capacité: |
Esclaves monodiffusion: 128 |
| Protocole réseau / transport: |
TCP/IP, UDP/IP, IPv4 |
| Caractéristiques: |
PTP, OCXO, mode multicast, mode unicast, Profil télécom, récepteur GNSS intégré |
| Extension/connectivité | |
| Interfaces: |
2 x 10GBase-X – SFP+ 1 x antenne – SMA 1 x port de synchronisation entrée/sortie PPS – SMA |
| Divers | |
| Normes de conformité: |
IEEE 1588v2 |
| Dimensions et poids | |
| Profondeur: |
15 cm |
| Hauteur: |
6.8 cm |
| Caractéristiques d’environnement | |
| Température minimale de fonctionnement: |
0 °C |
| Température maximale de fonctionnement: |
55 °C |
| Taux d’humidité en fonctionnement: |
5 – 90 % (sans condensation) |
| Information de compatibilité | |
| Conçu pour: |
Cisco UCS C220 M5 LFF, C220 M5 Server (Large Form Factor Disk Drive Model), C220 M5L, C220 M5SN SFF, C240 M5 Advanced, C240 M5 LFF Rack Server, C240 M5 LFF Rack Server (Tracer), C240 M5 Rack Server, C240 M5 Rack Server for Microsoft Azure Stack, C240 M5 SFF Rack Server, C240 M5L, C240 M5L Rack Server for Microsoft Azure Stack, SmartPlay Select C220 M5, SmartPlay Select C220 M5 High Core 1, SmartPlay Select C220 M5 Standard 1, SmartPlay Select C220 M5 Standard 2, SmartPlay Select C220 M5S Basic 1 (Tracer), SmartPlay Select C220 M5S Standard 1 (Tracer), SmartPlay Select C220 M5SX, SmartPlay Select C220 M5SX (Tracer), SmartPlay Select C220 M5SX Advanced 1 (Tracer), SmartPlay Select C220 M5SX Advanced 2, SmartPlay Select C220 M5SX Advanced 2 (Tracer), SmartPlay Select C220 M5SX Advanced 3, SmartPlay Select C220 M5SX Advanced 4, SmartPlay Select C220 M5SX Advanced 5, SmartPlay Select C220 M5SX Basic 1, SmartPlay Select C220 M5SX Basic 2, SmartPlay Select C220 M5SX Basic 3, SmartPlay Select C220 M5SX Basic 4, SmartPlay Select C220 M5SX Expansion Pack 2, SmartPlay Select C220 M5SX High Core 2, SmartPlay Select C220 M5SX Standard 2, SmartPlay Select C220 M5SX Standard 2 (Tracer), SmartPlay Select C220 M5SX Standard 3, SmartPlay Select C220 M5SX Standard 4, SmartPlay Select C240 M5 Standard 1, SmartPlay Select C240 M5L, SmartPlay Select C240 M5L High Frequency 1, SmartPlay Select C240 M5L High Frequency 2, SmartPlay Select C240 M5L Standard 1, SmartPlay Select C240 M5L Standard 2, SmartPlay Select C240 M5L Standard 3, SmartPlay Select C240 M5L Standard 4, SmartPlay Select C240 M5SX, SmartPlay Select C240 M5SX (Tracer), SmartPlay Select C240 M5SX Advanced 1, SmartPlay Select C240 M5SX High Frequency 2, SmartPlay Select C240 M5SX Standard 2, SmartPlay Select C240 M5SX Standard 3, SmartPlay Select C240 M5SX Standard 4, SmartPlay Select C240 M5SX Standard 5, SmartPlay Select C240 M5SX Standard 6 |
